樣品均質破碎

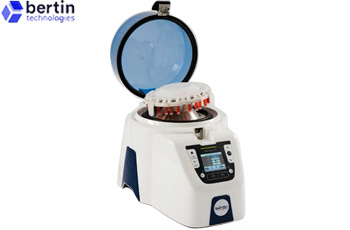

Bertin Precellys Evolution多功能組織均質器
法國Bertin Precellys Evolution生物樣品均質器集樣品研磨、細菌胞體裂解、流體均質和組織勻漿功能為一體。工作頭8字型三維振動帶動樣品管內研磨珠密集撞擊和剪切，在約30秒時間完成對樣品高效處理。選配Cryolys Evolution冷卻系統，可確保樣品勻漿期間溫度維持在 0 - 10℃。
設備名稱：組織均質器 組織勻漿儀 珠式研磨儀Tissue Homogenizer
制 造 商：Bertin Technologies公司 產 地：法國
品 牌：Bertin
型 號：Precellys Evolution
技術細節：見［技術規格］ 商品報價：見［訂貨指南］
主要功能用途
法國Bertin Precellys Evolution是一款集固體樣品研磨、細菌胞體裂解、流體均質和組織勻漿為一體的多功能生物樣品均質器。通過工作頭的8字型三維振動（可達10000rpm），帶動樣品管內研磨珠（玻璃珠、陶瓷珠、鋼珠等）高速振蕩，借助于密集撞擊和剪切力，能在大約30秒時間里實現對樣品研磨、裂解、均質處理?？捎糜谒熊浗M織(細菌、肝臟、大腦、皮膚等)、堅硬/堅韌的組織(骨頭、玉米、毛發、種子、土壤等)、微生物(革蘭氏陽性菌、革蘭氏陰性菌、酵母)樣品、糞便、土壤等的可靠處理。
技術特點
Precellys Evolution均質器工作頭帶動樣品管垂直方向3維震動，比單一水平或垂直方向振蕩研磨方式對樣品破碎均質更高效，普通樣品10-40s即可完全均質。而樣品處理時間大幅縮短，可有效防止樣品溫度的大幅上升，減少溫度敏感型樣品的損傷?？赏瑫r處理24個2ml/1.5ml/0.5ml或12個7ml或者6個15ml生物樣品，每個樣品單管封閉操作，避免交叉污染。而大型觸摸屏程序編程控制，直觀易用，進一步提高批間、批內樣品處理效果的均一性和穩定性。
1、人體工程學設計的樣品管上樣
采用專利真空壓蓋技術加樣品管固定鎖板，固定樣品管無需平衡，即插即用，上樣更方便、快捷。
密封O-型皮樣品室及
研磨艙及電機內部的連接部分用O-型橡膠環密封圈隔絕，確保樣品管發生破裂時液體及樣品控制在樣品艙內部，防止樣品污染的擴散到系統主機內部，方便清理，安全可靠。
真空壓蓋技術運用，降低了樣品管高速振蕩過程氣動產熱，減少樣品溫度上升程度。
真空壓蓋技術、壓力及過熱警報和強化保護罩, 適合在生物安全三級 (BSL3)實驗室操作使用，可用于朊病毒樣品(瘋牛癥) 檢測。
2、堅硬樣品處理經濟型解決方案
特制金屬7ml 管及夾板 (選配) 針對堅硬難磨樣本，樣品管可以重復使用，有效降低使用成本并確保研磨效果。
3、完善的操作安全保護機制
多重安全保障(壓力/溫度/速度/蓋子/電源報警)保障使用者和實驗室的安全。
3種安全防護：過溫報警、壓力報警、開蓋報警。
4、有效的溫度控制
研磨設定時間的最大設定值為90秒，避免客戶過度研磨，樣品不要過度升溫。
研磨工序內置暫停時間，確保樣品熱量減少，防止持續工作快速升溫對樣品損壞。
對樣品溫度要求極為苛刻的用戶，有Cryolys Evolution冷卻系統供選配，可維持工作室內的低溫狀態。
內置溫度報警功能。
5、Cryolys Evolution冷卻系統
Cryolys Evolution嵌入式冷卻模塊是Bertin公司專為Precellys Evolution均質器處理熱敏感生物樣本提供獨特控溫保護開發的新一代冷卻裝置。
Cryolys Evolution具有高效冷卻功能，可中和常規樣品勻漿過程中所產生熱量，確保在Precellys Evolution樣品勻漿期間樣品艙內溫度維持在 0 - 10℃，防止癌癥研究、藥理學實驗等樣品RNA、siRNA、代謝產物、酶或蛋白質等熱敏感分子（thermosensitive molecules）的受熱加速降解，確保獲得高產量提取。

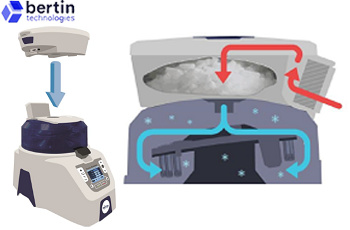

Cryolys Evolution使用液氮揮發或干冰升華作為冷媒，-50℃的低溫冷氣自然沉降進入樣品工作室，包圍每個樣品管，確保均質化過程中的樣品內溫度保持在0-10℃之間。
Cryolys Evolution可從Precellys Evolution主機控制界面，通過系統集成控制軟件進行編程控制冷卻流量可調。借助于溫度探頭，可通過Precellys Evolution軟件監控精確的溫度。
Cryolys Evolution無需壓縮機制冷裝置，直接安裝于Precellys Evolution均質器頂部，通過Precellys直接供電。無需任何空氣管路或電源線，不占用額外工作臺面，空間局促或生物安全性實驗室也可以正常使用。
技術規格
Precellys Evolution均質器 | |
樣品工作容量 | 24×2 mL/0.5 mL 12×7mL 6×15mL |
鎖定系統 | 自動管鎖系統 (automatic tubes locking system) |
轉速范圍 | 4500～10000rpm（以100 rpm遞增設定） |
可設定工作程序數 | 允許保存無限數量的協議 |
可編程循環次數（Number of cycles） | 每個程序最高可設10個循環 |
循環時間長（Cycles time） | 每個循環運行時間為1-90秒，1秒遞增可調 |
周期之間暫停（Pause between cycles） | 循環之間間隔1-120秒，1秒遞增可調 |
操作期間噪音 | 小于70dB |
主機尺寸(W×D×H) | 515×378×295mm（開蓋時515mm） |
主機重量 | 27.2Kg |
認證合格 | CE, FCC part 15 & 18 |
Cryolys Evolution冷卻系統 | |
樣品艙控溫范圍 | 0 - 10 ℃ |
制冷方式 | 液氮或干冰提供冷源 |
干冰容積 | 1.5kg干冰 |
干冰消耗量 | 1.5kg干冰可工作30 min (run time) |
尺寸(W×D×H) | 335×335×100mm |
重量 | 2.6kg |
安裝運行條件
工作電源：90 - 250VAC/50 - 60 Hz，1 kW
允許環境溫度：5 – 40℃
允許相對濕度：≤80%
系統組成
Precellys Evolution組織均質器的基本工作部件包主機、樣品管工作套件、研磨管及研磨珠耗材。
對樣品處理過程有低溫要求的實驗，可選配Cryolys Evolution冷卻單元。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
24×2mL樣品管工作套件 | Bertin | S002274-PEVO0-A | each | 2mL holder pack for Precellys Evolution Contains: 1x 2mL white blocking plate 1 x 2mL tube holder | 詢價 詢價 詢價 詢價 |
12×7mL樣品管工作套件 | Bertin | S000911-PEVO0-A | each | 7mL holder pack for Precellys Evolution Contains: 1 x 7mL grey blocking plate 1 x 7mL tubes holder | 詢價 詢價 詢價 詢價 |
12×7mL金屬管工作套件 | Bertin | S002275-PEVO0-A | each | Metal tube holder pack for Precellys Evolution Contains: 1 x Metal tube blocking plate for Precellys Evolution 1 x Metal tube holder for Precellys Evolution | 詢價 詢價 詢價 詢價 |
6×15mL樣品管工作套件 | Bertin | S000810-PEVO0-A | each | 15mL holder pack for Precellys Evolution Contains: 1x 15mL blue blocking plate 1x 15mL tubes holder | 詢價 詢價 詢價 詢價 |
96孔樣品工作套件 | Bertin | S002276-PEVO0-A | each | 96-Well Plate holder pack V2 for Precellys Evolution Contains: 1x 96WP V2 blocking plate 1x 96WP V2 tube holder | 詢價 詢價 詢價 詢價 |
96孔樣品架蓋板 | Bertin | S000912-PEVO0-A | each | Well-plate blocking plate for Precellys Evolution used with well-plate tubes holder for Precellys Evolution. | 詢價 詢價 詢價 詢價 |
多孔板支架 | Bertin | S000814-PEVO0-A | each | Well-plate tubes holder for Precellys Evolution used with well-plate blocking plate for Precellys Evolution. | 詢價 詢價 詢價 詢價 |
Precellys Evolution 維護套件 | Bertin | S000808-PEVO0-A | each | Precellys Evolution maintenance kit Contains: 2 x vacuum joints ; 1 x containment seal ; 1 x anti-rotation tubing kit | 詢價 詢價 詢價 詢價 |
2mL樣品管架蓋板 | Bertin | S000802-PEVO0-A | each | Blocking plate for Precellys Evolution used with 2mL tubes holder for Precellys Evolution | 詢價 詢價 詢價 詢價 |
7mL樣品管架灰色蓋板 | Bertin | S000803-PEVO0-A | each | Blocking plate for Precellys Evolution used with 7mL tubes holder for Precellys Evolution | 詢價 詢價 詢價 詢價 |
15mL樣品管架藍色蓋板 | Bertin | S000804-PEVO0-A | each | Blocking plate for Precellys Evolution used with 15mL tubes holder for Precellys Evolution | 詢價 詢價 詢價 詢價 |
2mL樣品管架 | Bertin | S000913-PEVO0-A | each | Tubes holder for Precellys Evolution with 2mL white blocking plate for Precellys Evolution | 詢價 詢價 詢價 詢價 |
7mL樣品管架 | Bertin | S000914-PEVO0-A | each | Tubes holder for Precellys Evolution use with 7mL grey blocking plate for Precellys Evolution | 詢價 詢價 詢價 詢價 |
15mL樣品管架 | Bertin | S000915-PEVO0-A | each | Tubes holder for Precellys Evolution used with 15mL blue blocking plate for Precellys Evolution | 詢價 詢價 詢價 詢價 |
Cryolys Evolution冷卻系統 | Bertin | P000671-CLYS2-A | each | Cryolys Evolution Package contains the following items: Cryolys Evolution module + specific Precellys lid mounting screws attached to the Precellys lid Hinge reinforcement for the Precellys Evolution Cable tie USB stick containing Cryolys Evolution control software | 詢價 詢價 詢價 詢價 |
基本耗材
Precellys Evolution均質器運行基本耗材主要是研磨管、研磨珠或研磨管-研磨珠預混合套裝。
使用Cryolys Evolution制冷單元時，還需消耗干冰。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
2mL 研磨管 | Bertin | P000945-LYSK0-A | 500 pieces | 2mL Empty Tubes and Caps with O-ring 2mL管套件含500 個未組裝的管和蓋 | 詢價 詢價 詢價 |
2mL增強研磨管 | Bertin | P000943-LYSK0-A | 200 pieces | 2mL Reinforced Empty Tubes and Caps 已組裝好管和蓋 | 詢價 詢價 詢價 |
7mL研磨管 | Bertin | P000944-LYSK0-A | 50 pieces | 7mL Empty Tubes and Caps 管和蓋子，已組裝 | 詢價 詢價 詢價 |
15mL研磨管 | Bertin | P000946-LYSK0-A | 50 pieces | 15mL Empty Tubes and Caps 管和蓋子，已組裝 | 詢價 詢價 詢價 |
2mL金屬研磨管 | Bertin | P002290-LYSK0-A | Each | 2mL Metal tube for dry grinding of very hard samples(bones, tooth, hair, etc.) only compatible with Precellys Evolution. includes 1 stainless steel tubes sample size range: from 20mg to 200mg | 詢價 詢價 詢價 |
7mL金屬研磨管 | Bertin | P002951-LYSK0-A | Each | 7mL Metal tube for dry grinding of very hard samples(bones, tooth, hair, etc.) only compatible with Precellys Evolution. includes 1 stainless steel tubes 7mL sample size range: from 200mg to 1g | 詢價 詢價 詢價 |
0.1mm氧化鋯珠 | Bertin | P000932-LYSK0-A | 500 preps | Zirconium oxide beads in bulk beads size: 0.1mm (450g, 500 preps) | 詢價 詢價 詢價 |
2.8mm氧化鋯珠 | Bertin | P000926-LYSK0-A | 500 preps | Zirconium oxide beads in bulk beads size: 2.8mm (325g, 500 preps) | 詢價 詢價 詢價 |
1.4mm氧化鋯珠 | Bertin | P000927-LYSK0-A | 500 preps | Zirconium oxide beads in bulk beads size: 1.4mm (325g, 500 preps) | 詢價 詢價 詢價 |
5.0mm氧化鋯珠 | Bertin | P000930-LYSK0-A | 100 beads | Zirconium oxide beads in bulk beads size: 5.0mm | 詢價 詢價 詢價 |
6.8mm氧化鋯珠 | Bertin | P000931-LYSK0-A | 100 beads | Zirconium oxide beads in bulk beads size: 6.8mm | 詢價 詢價 詢價 |
CK14-0.5mL 軟組織勻漿套裝 | Bertin | P000933-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-0.5mL Kit Including: 1.4mm ceramic beads in 0.5mL standard tubes. | 詢價 詢價 詢價 |
CK14-2mL軟組織勻漿套裝 | Bertin | P000912-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-2.0mL Kit Including: 1.4mm ceramic beads in 2mL standard tubes. | 詢價 詢價 詢價 |
蛋白提取勻漿套裝 CK14-2mL | Bertin | P000973-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-2mL Protein Safe Kit Including: 1.4mm ceramic beads in 2mL Protein Safe tubes. | 詢價 詢價 詢價 |
CK14-7mL軟 組織勻漿套裝 | Bertin | P000940-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-7mL Kit Including: 1.4mm ceramic beads in 7mL standard tubes | 詢價 詢價 詢價 |
CK14-WP軟組織勻漿套裝 | Bertin | P002137-LYSK0-A | Soft tissue homogenizing CK14_Well-Plate Prefilled 96 well-plate used with 96WP holder pack V2 for Precellys Evolution | 詢價 詢價 詢價 | |
CK28-2mL 硬組織勻漿套裝 | Bertin | P000911-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-2mL kit Including: 2.8mm ceramic beads in standard tubes | 詢價 詢價 詢價 |
CK28-2mL-R 硬組織勻漿套裝 | Bertin | P000916-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-2mL-R kit Including: 2.8mm ceramic beads in reinforced tubes | 詢價 詢價 詢價 |
CK28-2mL-R 蛋白勻漿套裝 | Bertin | P000972-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-2mL-R Protein Safe kit Including: 2.8mm ceramic beads reinforced tubes Proteases inhibitors | 詢價 詢價 詢價 |
CK28-7mL 硬組織勻漿套裝 | Bertin | P000935-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-7mL kit Including: 2.8mm ceramic beads in standard tubes | 詢價 詢價 詢價 |
CK28-15mL 硬組織勻漿套裝 | Bertin | P000947-LYSK0-A | 25 preps | Hard Tissue homogenizing CK28-15mL kit Including: 2.8mm ceramic beads in standard tubes | 詢價 詢價 詢價 |
CKMix-2mL 組織勻漿套裝 | Bertin | P000918-LYSK0-A | 50 preps | Tissue homogenizing CKMix - 2mL Including: ceramic mix beads of 1.4mm and 2.8mm in 2mL tubes. | 詢價 詢價 詢價 |
韌性微生物裂解套裝 VK05 - 0.5mL | Bertin | P000934-LYSK0-A | 50 preps | Tough micro-organism lysing VK05-0.5mL kit Includes： 0.5mm glass beads in 0.5mL tubes. | 詢價 詢價 詢價 |
韌性微生物裂解套裝 VK05 - 2mL | Bertin | P000913-LYSK0-A | 50 preps | Tough micro-organism lysing VK05-2mL kit includes 50 preps of 0.5mm glass beads in 2mL tubes. | 詢價 詢價 詢價 |
韌性微生物裂解套裝 VK05 - 15mL | Bertin | P000961-LYSK0-A | 25 preps | Tough micro-organism lysing VK05-15mL kit Including: 0.5mm glass beads in 15mL tubes. | 詢價 詢價 詢價 |
韌性微生物裂解套裝 VK05 WP | Bertin | P002136-LYSK0-A | Tough micro-organism lysing VK05 prefilled 96 well-plate for Precellys Evolution Prefilled 96 well-plate used with 96WP holder pack V2 (S002276-PEVO0-A.0) | 詢價 詢價 詢價 | |
微生物裂解套裝 VK01 - 2mL | Bertin | P000914-LYSK0-A | 50 preps | Micro-organism lysing kit VK01 - 2mL Including: 0.1mm glass beads in 2mL tubes. | 詢價 詢價 詢價 |
微生物裂解套裝 VKMix - 7mL | Bertin | P000937-LYSK0-A | 50 preps | Micro-organism lysing kit VKMix - 7mL Including: glass mix beads of 0.1mm and 0.5mm in 7mL tubes | 詢價 詢價 詢價 |
細菌裂解套裝 CK01 - 2mL | Bertin | P000919-LYSK0-A | 50 preps | Bacteria lysing kit CK01-2mL Including: 0.1mm ceramic beads in 2mL tubes. | 詢價 詢價 詢價 |
細菌裂解套裝 CK01 - 7mL | Bertin | P000938-LYSK0-A | 50 preps | Bacteria lysing kit CK01-7mL Including: 0.1mm ceramic beads in 7mL tubes with O-ring. | 詢價 詢價 詢價 |
細菌裂解套裝 CK01 - 15mL | Bertin | P000948-LYSK0-A | 25 preps | Bacteria lysing kit CK01-15mL Including: 0.1mm ceramic beads in 15mL tubes with O-ring. | 詢價 詢價 詢價 |
SK38-2mL 土壤樣品研磨套裝 | Bertin | P000915-LYSK0-A | 50 preps | SK38 Soil grinding kit Including: a mix of glass and ceramic beads in 2mL tubes. | 詢價 詢價 詢價 |
SK38-7mL 土壤樣品研磨套裝 | Bertin | P000936-LYSK0-A | 50 preps | SK38 Soil grinding kit Including: a mix of glass and ceramic beads in 7mL tube | 詢價 詢價 詢價 |
硬組織研磨套裝 MK28 - 2mL | Bertin | P000910-LYSK0-A | 50 preps | MK28 Hard Tissue Grinding Kit Including: 2mL Tubes with Screw Cap and Skirt 2.8mm stainless steel beads. | 詢價 詢價 詢價 |
硬組織研磨套裝 MK28-R - 2mL | Bertin | P000917-LYSK0-A | 50 preps | MK28-R Hard Tissue Grinding Kit Including: 2mL Reinforced Tubes with Screw Cap and Skirt 2.8mm stainless steel beads | 詢價 詢價 詢價 |
組織研磨套裝 CKMix50-R-2mL | Bertin | P000922-LYSK0-A | 50 preps | CKMix50-R Tissue Grinding Kit Including: 2mL Reinforced Tubes with Screw Cap, O-Ring and Skirt A prefilled mix beads of 2.8mm and 5.0mm | 詢價 詢價 詢價 |
組織研磨套裝 CKMix50-7mL | Bertin | P000939-LYSK0-A | 50 preps | CKMix50-7mL Tissue Grinding kit Including: 7mL standard tubes with Screw Cap, O-Ring and Skirt A prefilled mix of ceramic mix beads of 2.8mm and 5.0mm | 詢價 詢價 詢價 |
組織研磨套裝 CKMix50 - 15mL | Bertin | P000949-LYSK0-A | 50 preps | CKMix50 Tissue Grinding 15mL kit Including: 15mL standard tubes with Screw Cap, O-Ring and Skirt A mix of ceramic mix beads of 2.8mm and 5.0mm | 詢價 詢價 詢價 |
干燥硬組織研磨套裝 CK68-R - 2mL | Bertin | P000923-LYSK0-A | 50 preps | Dry hard tissue grinding CK68 2mL-R kit including： prefilled ceramic beads of 6.8mm in 2mL reinforced tubes | 詢價 詢價 詢價 |
硬組織研磨套裝 CK68 - 15mL | Bertin | P000950-LYSK0-A | 25 preps | Dry hard tissue grinding CK68 15mL kit including： prefilled ceramic beads of 6.8mm in 15mL tubes | 詢價 詢價 詢價 |
樣品研磨套裝 GK60 - 2mL | Bertin | P000924-LYSK0-A | 50 preps | Sample grinding GK60 - 2mL Including： garne flakes 0.7mm beads and one Ceria-stabilized ceramic bead 2mL reinforced tubes | 詢價 詢價 詢價 |
訂貨指南
Precellys 24 Touch組織均質器的出廠配置不含研磨管、研磨珠等耗材。
針對實驗室樣品材料處理體積、材料質地和均質技術要求，應選擇與樣品體積大小、類型相匹配的管子和與處理任務匹配的研磨珠，以實現可靠、高效和穩定處理效果。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
Precellys Evolution均質器 標準套裝 | Bertin | P000062-PEVO0-A.0 | each | Precellys Homogenizer Standard package Including: Precellys Evolution with 2mL holder pack toric joint and containment seal power cable spare toric joint | 詢價 詢價 詢價 詢價 |
Precellys Evolution均質器 7mL套裝 | Bertin | P000062-PEVO0-A07 | each | Precellys Evolution Homogenizer 7mL package for 2mL or 7mL tubes Including: Precellys Evolution Standard package(P000062-PEVO0-A.0) 7mL tubes holder pack (S000911-PEVO0-A) | 詢價 詢價 詢價 詢價 |

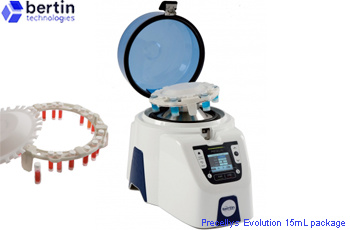

Precellys Evolution均質器 15mL套裝 | Bertin | P000062-PEVO0-A15 | each | Precellys Evolution Homogenizer 15mL package to process 2mL or 15mL tubes Including: Precellys Evolution Standard package(P000062-PEVO0-A.0) 15mL tube holder pack (S000810-PEVO0-A) | 詢價 詢價 詢價 詢價 |
Precellys Evolution均質器 完整套裝 | Bertin | P000062-PEVO0-AFU | each | Precellys Evolution Homogenizer Full package to process 2mL or 7mL or 15mL tubes. Including: Precellys Evolution Standard package(P000062-PEVO0-A.0) 7mL tubes holder pack (S000911-PEVO0-A) 15mL tube holder pack (S000810-PEVO0-A) | 詢價 詢價 詢價 詢價 |

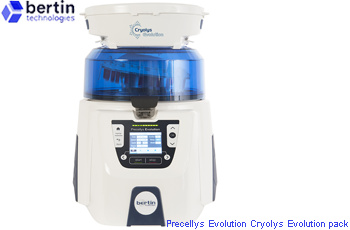

Precellys Evolution均質器 2mL低溫套裝 | Bertin | K002198-PEVO0-A0 | each | Combo Precellys Evolution + Cryolys Evolution Including: Precellys Evolution Standard package(P000062-PEVO0-A.0) Cryolys Evolution Package (P000671-CLYS2-A) | 詢價 詢價 詢價 詢價 |
Precellys 均質器 7mL低溫套裝 | Bertin | K002198-PEVO0-A07 | each | Precellys Evolution Homogenizer 7mL package Including: Precellys Evolution /Cryolys Evolution pack (K002198-PEVO0-A0) 7mL tubes holder pack (S000911-PEVO0-A) | 詢價 詢價 詢價 詢價 |
