Optima超速離心機轉頭適配離心管

Optima XPN-100超速離心機Type 70 Ti/Type 50.2 Ti角轉頭

Type 70 Ti與Type 50.2 Ti定角轉頭離心39mL離心管，滿足顆粒差速離心、DNA和病毒等平衡密度沉降。適用于Optima XPN-100/XPN-90/XPN-80和Optima XE-100/XE-90系列超速離心機。

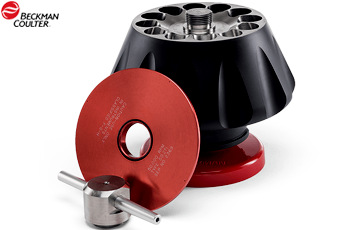

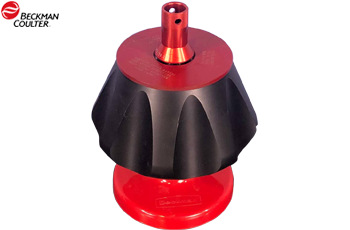

商品名稱：Type 70 Ti Type 50.2 Ti 定角轉頭 Fixed-Angle Titanium Rotor

制造商：美國貝克曼庫爾特(Beckman Coulter)公司

品牌：Beckman

轉頭配套適配器、離心管見:［訂購信息］

詳細描述

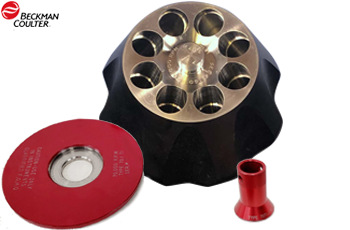

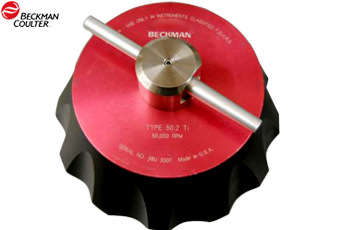

Type 70 Ti定角轉頭，額定轉速70000 rpm，離心管-轉軸成23°夾角，最大容量8×39mL離心管。Type 50.2 Ti額定轉速50000 rpm，離心管-轉軸成24°夾角，可離心多達 12 個39mL離心管，滿足顆粒差速離心分離、DNA和病毒等顆粒平衡密度沉降。適用于貝克曼Optima XPN-100/XPN-90/XPN-80系列高端立式超速離心機和Optima XE-100/XE-90系列基礎型超速離心機。

轉子由鈦制成，并涂有黑色聚氨酯漆。鋁制蓋子和手柄經過紅色陽極氧化處理，具有耐腐蝕性。蓋子和手柄中的丁腈橡膠制成的 O 形圈在離心過程中保持轉子內部的大氣壓力。蓋子上的四個小孔為臨時通氣口，防止在泄漏時壓力積聚和擠壓O形圈。

超速離心機配備的光電探測器與轉頭底部的超速盤配合，對轉速實時監測。如檢測到實際轉速超過最大允許速度值，則系統自動關閉轉頭的運行。

1、轉頭使用前的準備

確保轉子中的金屬螺紋清潔并用潤滑劑（Spinkote lubricant 306812）均勻潤滑以減少轉頭蓋啟閉操作中螺紋的磨損。還要確保O形圈均勻地涂有硅真空潤滑脂（silicone vacuum grease 335148）以確保離心孔內的真空密封性能。

將裝滿的容器對稱地裝入轉子，至于轉頭中位置相對的管子，必須用相同密度的液體填充到相同的水平，確保轉頭平衡。

在安裝轉子蓋之前，請確保在管子上放置正確的適配器（如果需要）。蓋上蓋子后，可徒手用轉頭手柄擰緊轉頭蓋。

2、樣品移除與回收

將轉子垂直向上提起并離開驅動軸即可從離心機中取出，通過逆時針擰動轉頭手柄即可拆下轉子蓋。

當使用了轉頭蓋帽適配器時（spacer），使用適配器移除工具和管蓋夾取工具，取出離心孔中墊片。

3、轉頭技術規格

轉頭型號	Type 70Ti	Type 50.2
最高速度	70000 rpm	50000 rpm
最高轉速時溶液額定密度 (Density rating at maximum speed)	1.2 g/mL
最高轉速時相對離心場（Relative Centrifugal Field）
最大離心半徑/最大離心力	Rmax 91.9 mm/504000×g;	Rmax 107.9 mm/302000×g
平均離心半徑/平均離心力	Rav 65.7 mm/361000×g;	Rav 81.2 mm/227000×g
最小離心半徑/最小離心力	Rmin 39.5 mm/217000×g;	Rmin 54.4 mm/152000×g
最大速度下 k 系數(k factor)	44	69
額定離心管尺寸 (Nominal tube dimensions)	25 × 89 mm
額定離心容量(Nominal tube capacity)	8×39 mL	12×39 mL
達到最大速度的近似加速時間（滿載）	8.5 min	10.5 min
從最大速度(滿載)開始的減速時間	7.0 min	10.0 min
滿載轉頭重量	9 kg	13.6 kg
轉頭的材質	鈦合金

4、轉頭配套離心管

Type 70 Ti、Type 50.2 Ti轉頭適配的離心管基本一致，標準配置不含離心管。

轉頭兼容4.0mL-38.5mL開口管、熱封管、離心瓶和不銹鋼離心管。

訂購信息

品名	品牌	貨號	規格	描述	報價
Type 70 Ti角轉頭	Beckman	337922	set	Type 70 Ti Rotor Assembly Standard accessories includes: 3x 011757 O-rings 3x 870612 O-rings 2x 335585 Over-speed Disks	詢價 詢價
Type 50.2 Ti角轉頭	Beckman	337901	set	Type 50.2 Ti Rotor Assembly Standard accessories includes: 3x 834301 O-rings 3x 854519 O-rings 2x 330336 Over-speed Disks	詢價 詢價

39mL熱封管工作套裝	Beckman	348178	set	39mL Quick-Seal Tube Kit includes: 2盒 342414 Polypropylene Tubes 2盒 344326 Ultra-Clear Tubes 12個 342699 Spacers 1個 348124 Tube Rack 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (Cordless Tube Topper Kit required)	詢價 詢價
32.4mL 指封管工作套裝	Beckman	361662	set	32.4mL Polypropylene OptiSeal Tubes kit includes: 4盒 361625 of OptiSeal Tubes 12個 361669 Spacers(6 pkg of 2) 1個 361646 OptiSeal Tube Rack 1個 361668 Tube Extraction Too 1個 338765 Spacer Removal Tool	詢價 詢價
38.5mL薄壁管工作套裝	Beckman	348177	set	38.5mL Open-Top Tube Kit inclues: 2盒38.5 mL 薄壁開口管 326823 Polypropylene Tubes 2盒38.5 mL 超凈開口管 344058 Ultra-Clear Tubes 12個 C20182 Tube Caps 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (331202 and 305075 Tools required)	詢價 詢價
35.5mL薄壁管工作套裝	Beckman	348172	set	35.5mL Polypropylene Open-Top Tube kit for Type 70Ti includes: 4盒 344367 35.5mL Polypropylene Tubes 10個 337927 Tube Caps 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (338841 and 305075 Tools required)	詢價 詢價
27mL g-Max管工作套裝	Beckman	357346	set	27mL Quick-Seal g-Max Polypropylene Tube Kit includes: 50個 27 mL g-Max快封管 343665 12個 管帽適配器 343448 1個 g-Max取管鑷子 878446 1個 取帽工具 338765	詢價 詢價

39mL超凈熱封管	Beckman	344326	50/pkg	38.5mL Quick-Seal Round-Top Ultra-Clear Tube Nominal Size: 25 x 89mm - 50Pk Applicable Max. speed: 70000rpm Aluminum Tube Spacer 342699 Required	詢價 詢價
39mL超凈熱封管	Beckman	C14299	48/pkg	39mL Ultra-Clear Quick-Seal tube Certified Free & Sterile（無菌無酶） Nominal Size: ?25×89 mm Applicable Max. speed: 70000rpm Aluminum Tube Spacer 342699 Required	詢價 詢價
39mL熱封管	Beckman	342414	50/pkg	39mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 25 x 89mm - 50Pk Applicable Max. speed: 70000rpm Aluminum Tube Spacer 342699 Required	詢價 詢價
39mL熱封管	Beckman	C14304	48/pkg	39mL Quick-Sea Round Bottom Polypropylene Tube Sterile + Certified Free（無菌無酶） Nominal Size: 25 x 89mm - 48Pk Applicable Max. speed: 70000rpm Aluminum Tube Spacer 342699 Required	詢價 詢價
Φ25mm管帽墊片	Beckman	342699	1/pkg	25mm Diameter Aluminum Tube Spacer Applicable Rotor: Type 70 Ti, Type 50.2 Ti	詢價 詢價

38.5mL超凈薄壁開口管	Beckman	344058	pkg/50	38.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 25 x 89mm Applicable Max. speed: 60000rpm Required Cap Spacers C20182	詢價 詢價
38.5mL薄壁開口管	Beckman	326823	pkg/50	38.5mL Open-Top Thinwall Polypropylene Tube Nominal Size: 25 x 89mm Applicable Max. speed: 60000rpm Required Cap Spacers C20182	詢價 詢價
38.5mL管帽組件	Beckman	C20182	1/pkg	25mm diameter Aluminum Cap assy	詢價 詢價

35.5mL薄壁開口管	Beckman	344367	50/pkg	35.5mL Open-Top Thinwall Polypropylene Tube Nominal Size: 25×83mm - 50Pk Applicable Ultracentrifuge Rotors: Type 70 Ti Applicable Max. speed: 70000rpm Required Tube Cap Assembly 337927	詢價 詢價
鋁/鈦管蓋組件	Beckman	337927	1/pkg	22mm Diameter Aluminum/Titanium Cap Assembly Applicable Ultracentrifuge Rotor Type 70 Ti	詢價 詢價

33.5mL熱封管	Beckman	344623	50/pkg	33.5mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 25 x 83mm Applicable Max. speed: 70000rpm Tube Spacer 344635 Required	詢價 詢價
Φ25mm管帽墊片	Beckman	344635	1/pkg	25mm Diameter Delrin Tube Spacer Applicable Rotors: Type 70 Ti, Type 50.2 Ti	詢價 詢價

32.4mL 指封管	Beckman	361625	56/pkg	32.4mL OptiSeal Polypropylene Tube Nominal Size: 26 x 77mm Applicable Max. speed: 70000rpm Tube Spacer 361669 Required	詢價 詢價
Φ25mm管帽墊片	Beckman	361669	2/pkg	25mm Diameter Ultem Tube Spacer Applicable Rotors: Type 70Ti, Type 50.2Ti	詢價 詢價

32mL厚壁開口管	Beckman	355642	25/pkg	32mL Open-Top Thickwall Polypropylene Tube Nominal Size: 25 x 89mm - 25Pk Applicable Max. speed: 60000rpm Cap Assembly 338906 Required	詢價 詢價
32mL透明厚壁開口管	Beckman	355631	25/pkg	32mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 25 x 89mm - 25Pk Applicable Max. speed: 60000rpm Cap Assembly 338906 Required	詢價 詢價
32mL管蓋組件	Beckman	338906	1/pkg	20mm Diameter Aluminum Tube Cap Assembly Applicable Rotors: Type 70 Ti, Type 50.2 Ti	詢價 詢價

27mL熱封管	Beckman	343665	50/pkg	27mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 25 x 64mm - 50Pk Applicable Max. speed: 70000rpm Required Noryl Tube Spacer 343448	詢價 詢價
27mL超凈熱封管	Beckman	344323	50/pkg	27mL Quick-Seal Bell-Top Ultra-Clear Tube Nominal Size: 25 x 64mm - 50Pk Applicable Max. speed: 70000rpm Required Quick-Seal Noryl Tube Spacer 343448	詢價 詢價
15mL熱封管	Beckman	343664	50/pkg	15mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 25 x 38mm - 50Pk Applicable Max. speed: 70000rpm Required Noryl Tube Spacer 343448	詢價 詢價
15mL超凈熱封管	Beckman	344324	50/pkg	15mL Quick-Seal Bell-Top Ultra-Clear Tube Nominal Size: 25 x 38mm - 50Pk Applicable Max. speed: 70000rpm Required Noryl Tube Spacer 343448	詢價 詢價
Φ25mm浮置墊片	Beckman	343448	1/pkg	25mm Diameter Noryl Tube Spacer	詢價 詢價

26.3mL透明離心瓶	Beckman	355618	6/pkg	26.3mL Polycarbonate Bottle with Cap Assembly Nominal Size: 25 x 89mm Applicable Max. speed: 60000rpm	詢價 詢價
26.3mL透明離心瓶身	Beckman	355654	6/pkg	26.3mL Polycarbonate Bottle Cap Assembly Required	詢價 詢價
26.3mL瓶蓋組件	Beckman	355619	6/pkg	Bottle Cap Assembly (25.0 mm dia)	詢價 詢價

13.5mL薄壁開口管	Beckman	326814	50/pkg	13.5mL thinwall polypropylene Tube Nominal Size: 16×76 mm Applicable Max. speed: 40000rpm Required Cap Assembly 330860 Required tube Adapter 303307	詢價 詢價
13.5mL超凈薄壁開口管	Beckman	344085	50/pkg	13.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 16 x 76mm Applicable Max. speed: 40000rpm Required Cap Assembly 330860 Required tube Adapter 303307	詢價 詢價
13.5mL管蓋組件	Beckman	330860	1/pkg	13.4mm Diameter Aluminum Tube Cap Assembly	詢價 詢價
Φ16mm管套適配器	Beckman	303307	1/pkg	16mm Diameter Delrin Tube Adapter	詢價 詢價

10mL透明厚壁開口管	Beckman	355630	25/pkg	10mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 16 x 76mm - 25Pk Applicable Max. speed: 40000rpm Required Cap Assembly 338907 Required tube Adapter 303307	詢價 詢價
10mL厚壁開口管	Beckman	355640	25/pkg	10mL Open-Top Thickwall Polypropylene Tube Nominal Size: 16 x 76mm - 25Pk Applicable Max. speed: 40000rpm Required Cap Assembly 338907 Required tube Adapter 303307	詢價 詢價
10mL管蓋組件	Beckman	C39378	1/pkg	16mm Diameter Aluminum Tube Cap Assembly C39378(替換貨號338907)	詢價 詢價
Φ16mm管套適配器	Beckman	303307	1/pkg	16mm Diameter Delrin Tube Adapter	詢價 詢價

6.5mL超凈薄壁開口管	Beckman	344088	50/pkg	6.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 13 x 64mm - 50Pk Applicable Max. speed: 45000rpm Required Cap Spacer C20178 Required Adapter 303392	詢價 詢價
6.5mL薄壁開口管	Beckman	326820	50/pkg	6.5mL Open-Top Thinwall Polypropylene Tube 13 x 64mm - 50Pk Applicable Max. speed: 45000rpm Required Cap Spacer C20178 Required Adapter 303392	詢價 詢價
6.5mL超凈薄壁開口管	Beckman	C14296	48/pkg	6.5mL Open-Top Thinwall Ultra-Clear Tube Sterile + Certified Free（無菌無酶） Nominal Size: 13 x 64mm - 48Pk Applicable Max. speed: 45000rpm Required Cap Spacer C20178 Required Adapter 303392	詢價 詢價
Φ13mm管適配器	Beckman	303392	1/pkg	13mm Diameter Delrin Tube Adapter	詢價 詢價
13mL管蓋組件	Beckman	C20178	1/pkg	Cap Spacers for 6.5mL Open-Top ube	詢價 詢價

4mL厚壁開口管	Beckman	355644	25/pkg	4mL Open-Top Thickwall Polypropylene Tube Nominal Size: 13 x 64mm - 25Pk Applicable Max. speed: 43000rpm Required Adapter 303392	詢價 詢價
4mL透明厚壁開口管	Beckman	355645	25/pkg	4mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 13 x 64mm - 25Pk Applicable Max. speed: 43000rpm Required Adapter 303392	詢價 詢價
Φ13mm管適配器	Beckman	303392	1/pkg	13mm Diameter Delrin Tube Adapter	詢價 詢價
