Optima超速離心機轉頭適配離心管

Optima XPN-100/90/80超速離心機Type 90 Ti/Type 70.1 Ti角轉頭

Type 90 Ti、Type 70.1 Ti定角轉頭，使用相同的2.0-13.5mL超速離心管，可滿足樣品的速度區帶離心、DNA和病毒等顆粒沉降、和脂質密度浮選等應用需求。適用于Optima XPN-100/XPN-90/XPN-80系列和Optima XE-100/XE-90系列立式超速離心機。

商品名稱：Type 90 Ti Type 70.1 Ti 角轉頭 Fixed-Angle Titanium Rotor

制造商：美國貝克曼庫爾特(Beckman Coulter)公司

品牌：Beckman

轉頭配套適配器、離心管見:［訂購信息］

詳細描述

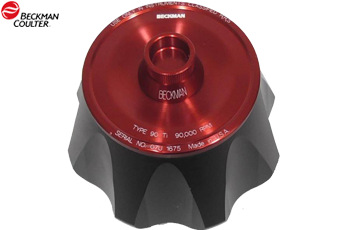

Type 90 Ti定角轉頭，離心管-轉軸成25°夾角，工作容量8×13.5mL，額定轉速90000 rpm。

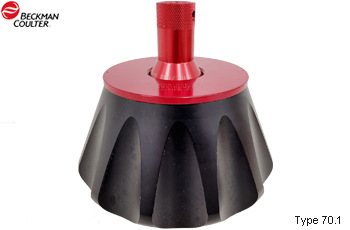

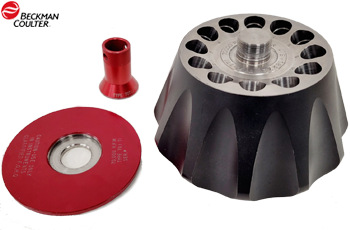

Type 70.1 Ti定角轉頭，離心管-轉軸成24°角，每輪運行可離心12×13.5mL離心管，額定轉速70000 rpm。

兩個轉頭的離心力可滿足樣品的速度區帶離心、DNA和病毒等顆粒沉降、和脂質密度浮選等應用需求。適用于貝克曼Optima XPN-100/XPN-90/XPN-80系列高端立式超速離心機和Optima XE-100/XE-90系列基礎型超速離心機。

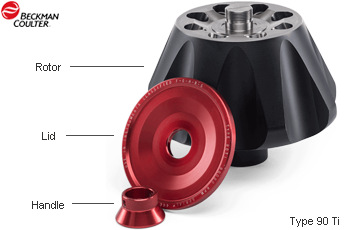

轉子由鈦制成，并涂有黑色聚氨酯漆。鋁制蓋子和手柄經過紅色陽極氧化處理，具有耐腐蝕性。蓋子和手柄中的丁腈橡膠制成的 O 形圈在離心過程中保持轉子內部的大氣壓力。蓋子上的四個小孔為臨時通氣口，防止在泄漏時壓力積聚和擠壓O形圈。

超速離心機配備的光電探測器與轉頭底部的超速盤配合，對轉速實時監測。如檢測到實際轉速超過最大允許速度值，則系統自動關閉轉頭的運行。

1、轉頭使用前的準備

確保轉子中的金屬螺紋清潔并用潤滑劑（Spinkote lubricant 306812）均勻潤滑以減少轉頭蓋啟閉操作中螺紋的磨損。還要確保O形圈均勻地涂有硅真空潤滑脂（silicone vacuum grease 335148）以確保離心孔內的真空密封性能。

將裝滿的容器對稱地裝入轉子，至于轉頭中位置相對的管子，必須用相同密度的液體填充到相同的水平，確保轉頭平衡。

在安裝轉子蓋之前，請確保在管子上放置正確的適配器（如果需要）。蓋上蓋子后，可徒手用轉頭手柄擰緊轉頭蓋。

2、樣品移除與回收

將轉子垂直向上提起并離開驅動軸即可從離心機中取出，通過逆時針擰動轉頭手柄即可拆下轉子蓋。

當使用了轉頭蓋帽適配器時，使用適配器移除工具和管蓋夾取工具，取出離心孔中墊片。

3、轉頭技術規格

轉頭型號	TYPE 90 Ti	TYPE 70.1 Ti
最高速度	90000 rpm	70000 rpm
最高轉速時溶液額定密度 (Density rating at maximum speed)	1.2 g/mL
最高轉速時相對離心場（Relative Centrifugal Field）
最大離心半徑/最大離心力	Rmax 76.5 mm/694000×g	Rmax 82.0 mm/450000×g
平均離心半徑/平均離心力	Rav 55.4 mm/503000×g	Rav 61.2 mm/336000×g
最小離心半徑/最小離心力	Rmin 34.2 mm/310000×g	Rmin 40.5 mm/222000×g
最大速度下 k 系數(k factor)	25	36
額定離心管尺寸 (Nominal tube dimensions)	16 × 76 mm
額定離心容量(Nominal tube capacity)	8×13.5 mL	12×13.5 mL
達到最大速度的近似加速時間（滿載）	6 min	6.5 min
從最大速度(滿載)開始的減速時間	4.5 min	4.0 min
滿載轉頭重量	5 kg	5.9 kg
轉頭的材質	鈦合金

4、轉頭配套離心管

Type 90 Ti、Type 70.1 Ti轉頭適配的離心管一致（標準配置不含離心管）。

轉頭兼容2.0mL-13.5mL開口管、熱封管和離心瓶。轉頭標準配置不含離心管。

指封管、Quick-Seal管需要管帽墊片/墊片支持，保護離心樣品管安全。薄壁開口管(Thinwall)和超透明開口管(Ultra-Clear)，應盡可能滿地多填充試管，以防止離心過程中試管塌陷。為防止上樣過程樣品溢出，須添加配套管蓋

厚壁管可以帶或不帶蓋子進行離心（至少一半填充）。

Quick-Seal離心管有效密封需用管蓋熱密封器（Cordless Tube Topper）工作套件操作和配套離心管架。

離心管及配套適配器、管蓋詳情參考“訂購信息”。

訂購信息

品名	品牌	貨號	規格	描述	報價
Type 90 Ti角轉頭	Beckman	355530	set	Type 90 Ti Rotor Assembly Standard accessories includes: 3x 839347 O-rings 3x 876089 O-rings 2x 355539 Over-speed Disks 1x 356959 Handle Tool	詢價詢價
Type 70.1 Ti角轉頭	Beckman	342184	set	Type 70.1 Ti Rotor Assembly Standard accessories includes: 3x 011757 O-rings 3x 858125 O-rings 2x 335585 Over-speed Disks	詢價詢價

13.5mL熱封管工作套裝	Beckman	348179	set	13.5mL Quick-Seal Tube Kit includes: 2盒 342413 13.5mL Quick-Seal Polypropylene Tubes 2盒 344322 13.5mL Quick-Seal Ultra-Clear Tubes 12個 342695 Tube Cap Spacers 1個 348123 Tube Rack 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (Cordless Tube Topper Kit required)	詢價詢價
13.5mL薄壁開口管工作套裝	Beckman	348180	set	13.5mL Open-Top Tube Kit includes: 2盒 326814 13.5mL Open-Top Polypropylene Tubes 2盒 344085 13.5mL Open-Top Ultra-Clear Tubes 12個 341968 Tube Caps 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (331202 and 305075 Tools required)	詢價詢價
8.9mL指封管工作套裝	Beckman	361660	set	8.9mL OptiSeal Polypropylene Tube Kit includes: 4盒 361623 8.9mL OptiSeal Tubes 12個 361670 Tube Cap Spacers 1個 361642 OptiSeal Tube Rack 1個 361668 Tube Extraction Tool 1個 338765 Spacer Removal Tool	詢價詢價
6.3mL g-Max管工作套裝	Beckman	357334	set	6.3mL g-MAX Quick-Seal Polypropylene tube Kit includes: 50個 6.3mL g-MAX Quick-Seal Polypropylene tube 345830 12個管帽適配器 345828 1個 g-Max取管鑷子 878446 1個取帽工具 338765	詢價詢價
4.2mL g-Max管工作套裝	Beckman	357332	pkg/50	4.2mL Quick-Seal g-Max Polypropylene tube Kit includes: 50個 4.2mL g-Max管 356562 12個管帽適配器 345828 1個 g-Max取管鑷子 878446 1個取帽工具 338765	詢價詢價

13.5mL超凈熱封管	Beckman	344322	50/pkg	13.5mL Quick-Seal Round-Top Ultra-Clear Tube Nominal Size: 16 x 76mm - 50Pk Applicable Rotor: Type 90 Ti, Type 70.1 Ti Applicable Max. speed 90000rpm Required Red Aluminum Spacer 342695	詢價詢價
13.5mL熱封管	Beckman	342413	50/pkg	13.5mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 16 x 76mm - 50Pk Applicable Max. speed 90000rpm Required Red Aluminum Spacer 342695	詢價詢價
13.5mL無菌熱封管	Beckman	C14306	48/pkg	13.5mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 16 x 76mm - 48Pk Sterile + Certified Free（無菌無酶） Required Red Aluminum Spacer 342695	詢價詢價
Φ16mm管帽墊片	Beckman	342695	1/pkg	16mm Diameter Auminum Tube Spacer Applicable Rotors: Type 90 Ti, Type 70Ti, MLA-55	詢價詢價
Φ16mm離心管架	Beckman	348123	1/pkg	Tube Rack (16.0mm Tubes) Applicable tubes : Quick-Seal Ultra-Clear Tubes (344322) Quick-Seal Polypropylene Tubes 344622)	詢價詢價

13.5mL薄壁開口管	Beckman	326814	50/pkg	13.5mL thinwall polypropylene Tube Nominal Size: 16×76 mm Applicable Rotor: Type 90 Ti,Type 70.1 Ti Applicable Max. speed 80000rpm Required Titanium Cap Assembly 341968	詢價詢價
13.5mL超凈薄壁開口管	Beckman	344085	50/pkg	13.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 16 x 76mm Applicable Max. speed 80000rpm Required Titanium Cap Assembly 341968	詢價詢價
13.5mL管蓋組件	Beckman	341968	1/pkg	13.4mm Diameter Tube Cap Assembly Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55 適用于326814, 344085	詢價詢價

10mL透明厚壁開口管	Beckman	355630	25/pkg	10mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 16 x 76mm - 25Pk Applicable Max. speed 50000rpm Required Caps: C39378(替換338907）	詢價詢價
10mL厚壁開口管	Beckman	355640	25/pkg	10mL Open-Top Thickwall Polypropylene Tube Nominal Size: 16 x 76mm - 25Pk Applicable Max. speed 30000rpm Required Caps: C39378(替換338907）	詢價詢價
10mL管蓋組件	Beckman	C39378	1/pkg	16mm Diameter Aluminum Tube Cap Assembly C39378(替換貨號338907)	詢價詢價

10.4mL 透明離心瓶	Beckman	355603	pkg/6	10.4mL Polycarbonate Bottle with Cap Assembly Nominal Size: 16×76mm Applicable Max. speed 65000rpm	詢價詢價

10.4mL 透明離心瓶無蓋	Beckman	355651	25/pkg	10.4mL Polycarbonate Bottle without Cap Assembly Required Cap Assembly 355604	詢價詢價
10.4mL瓶蓋組件	Beckman	355604	6/pkg	16mm Diameter Noryl Cap Assembly Bottle Applicable Ultracentrifuge Rotors: Type 90 Ti	詢價詢價

10mL熱封管	Beckman	344622	50/pkg	10mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16 x 67mm - 50Pk Applicable Max. speed 90000rpm Required Cap Spacer: 344676	詢價詢價
Φ16mm管帽墊片	Beckman	344676	1/pkg	16mm Diameter Noryl Tube Spacer Applicable Rotor: Type 90 Ti, Type 70.1 Ti, MLA-55	詢價詢價
Φ16mm離心管架	Beckman	348123	1/pkg	Tube Rack (16.0mm Tubes) Applicable : Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322) Quick-Seal Polypropylene Tubes 344622)	詢價詢價

8.9mL 指封管	Beckman	361623	56/pkg	8.9mL OptiSeal Polypropylene Tube Nominal Size: 16 x 60mm - 56Pk Applicable Max. speed 90000rpm Required Cap Spacer: 361670	詢價詢價
Φ16mm管帽墊片	Beckman	361670	2/pkg	16mm Diameter Noryl Tube Spacer Quantity of Two Product No:361670 Applicable Rotor: Type 70.1 Ti, Type 90Ti, MLA-55. 適用于361623	詢價詢價
指封管架	Beckman	361642	1/pkg	16 x 60mm Tube Rack	詢價詢價

6.5mL超凈薄壁開口管	Beckman	C14296	48/pkg	6.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 13 x 64mm - 48Pk Sterile + Certified Free（無菌無酶） Applicable Max. speed 50000rpm Required Adapter: 303313	詢價詢價
Φ13mm管套適配器	Beckman	303313	1/pkg	13mm Diameter Delrin Tube Adapter	詢價詢價

6.3mL熱封管	Beckman	345830	pkg/50	6.3mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16 x 44mm - 50Pk Applicable Max. speed 90000rpm Required Noryl Floating Spacer 345828	詢價詢價
4.2mL熱封管	Beckman	356562	50/pkg	4.2mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16 x 38mm - 50Pk Applicable Max. speed 90000rpm Required Floating Spacer 345828	詢價詢價
Φ16mm管帽墊片	Beckman	345828	1/pkg	16mm Diameter Noryl Floating Tube Spacer Applicable Rotor: Type 90 Ti, Type 70.1 Ti, MLA-55	詢價詢價
Φ16mm離心管架	Beckman	348123	1/pkg	Tube Rack (16.0mm Tubes) Applicable : Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322) Quick-Seal Polypropylene Tubes 344622)	詢價詢價

4mL厚壁開口管	Beckman	355644	25/pkg	4mL Open-Top Thickwall Polypropylene Tube Nominal Size: 13 x 64mm - 25Pk Applicable Max. speed 50000rpm Required Adapter 303313	詢價詢價
4mL透明厚壁開口管	Beckman	355645	25/pkg	4mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 13 x 64mm - 25Pk Applicable Max. speed 50000rpm Required Adapter 303313	詢價詢價
Φ13mm管套適配器	Beckman	303313	1/pkg	13mm Diameter Delrin Tube Adapter Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55	詢價詢價

2mL超凈薄壁開口管	Beckman	344091	50/pkg	2mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 49 x 8mm - 50Pk Applicable Rotors: Type 90 Ti Type, 70.1 Ti Applicable Max. speed 40000rpm Required Aluminum Cap Assembly 303624 Required Adapter 303376.	詢價詢價
Φ8mm管套適配器	Beckman	303376	1/pkg	8mm Diameter Delrin Tube Adapter Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55. 適用于344091	詢價詢價
Φ8mm管帽組件	Beckman	303624	1/pkg	8mm Diameter Aluminum Tube Cap Assembly Applicable Ultracentrifuge Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55. 適用于344091	詢價詢價
